Probably the best gateway technologies in the world
MainCatalogSecure communicationGSM2GSM Isolator

GSM Isolator for 4 conversations to prevent monitoring of your geolocation

Print
Hot offer. The duration of action is limited
GSM2GSM Isolator for 8 SIM
GSM2GSM Isolator for 8 SIM
  • GSM2GSM Isolator for 8 SIM
  • GSM2GSM Isolator for 8 SIM
  • GSM2GSM Isolator for 72 SIM
Main characteristics
SKU 2168
Vendor DT
Category Secure communication
Standart 2G/900/1800/850/1900 - VoIP/SIP/H323
Features Can work as SIM server for other remote gateways DTT
SMS(MMS) SMS e-mail gateway
Antenna 1 Antenna connector SMA (female), Impedance 50 Ω
Q'ty of channels 8
Q'ty SIM per channel 64 SIm Embedded sim server
Protocols TCP/IP, SSH, SMTP, POP
Interface Com port, USB, WAN
Management PC console via IP or COM port
IMEI changing Yes
Dimensions, HWD 290 x 190 x 40 mm
Weight 4.5 kg
Shipment Worldwide free of charge
Price 2999 $
Other currency 2786 ˆ
In stock
Wire Transfer VISA MasterCard

GSM Isolator for
4 simultaneous conversations to prevent monitoring of your location

How to prevent detection of your location via your mobile number?

It is no secret that cellular operator and government agencies can easily calculate your GSM number location by the method of triangulation. Read more here

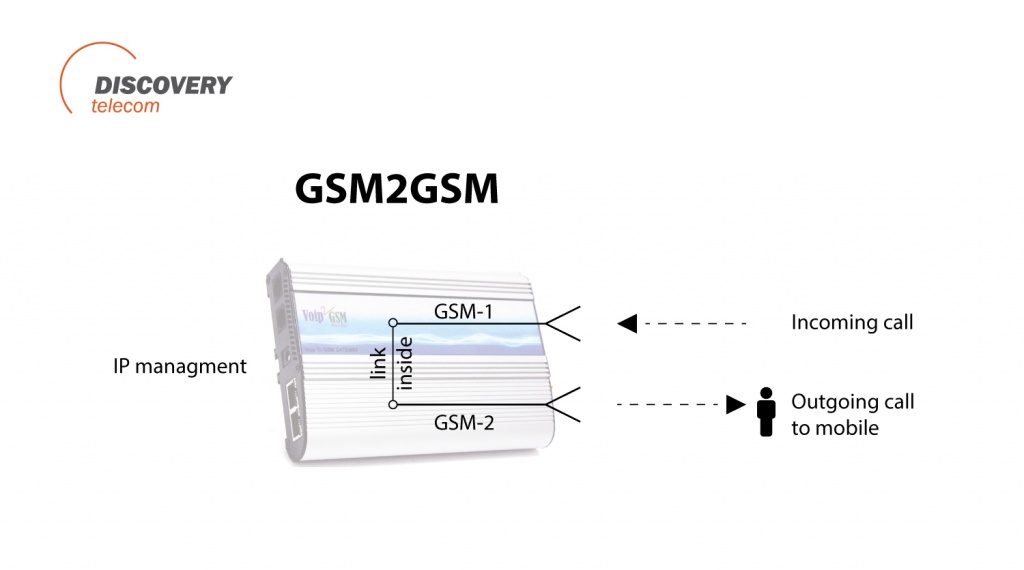

To prevent this, use GSM Isolator. The system consists of 8 GSM modules interconnected internal link. In each module is inserted on one SIM card: one your regular card number is well known your friends and colleagues, and the second one "technical card", the number of which no one knows except you.

When your main card receives a call, a system automatically switches it to the second technical SIM number via internal digital link inside of gateway, and it resends a call to your mobile phone.
That's why the operator or the caller does not know your mobile number and the
 technical SIM number through which the call was made.

Thus, no one unable to define your real number in your mobile phone, and therefore your location can not be tracked
File Title Release Date File Type Size (mb) Action
API for DTT VOIP-GSM ver. 7.2B10 10-15-2014 Software (zip) 8.70 MB download
API for DTT VOIP-GSM gateways ver. 7.1B48_26 10-15-2014 Software (exe) 9.34 MB download
API for DTT VOIP-GSM gateways (7.1B48) 10-15-2014 Software (rar) 9.02 MB download
API for DTT VOIP-GSM gateways (7.1B47_22) 10-15-2014 Software (rar) 8.95 MB download
SMS VOIP gateway. Installation 11-11-2013 Documentation (pdf) 0.16 MB download
User manual for DTT VOIP-GSM 8-16-24 gateways 08-01-2018 Documentation (pdf) 1.55 MB download
User manual for DTT 8-16-24 channel gateways (Version 5.36z) 08-01-2018 Documentation (pdf) 1.44 MB download
Windows update for DTT VOIP2GSM gateways 06-08-2013 Driver (rar) 2.65 MB download
IMEI changing in DTT GSM VoIP gateways 06-08-2013 Documentation (pdf) 1.05 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
API for DTT VOIP-GSM ver. 7.2B10 10-15-2014 Software (zip) 8.70 MB download
API for DTT VOIP-GSM gateways ver. 7.1B48_26 10-15-2014 Software (exe) 9.34 MB download
API for DTT VOIP-GSM gateways (7.1B48) 10-15-2014 Software (rar) 9.02 MB download
API for DTT VOIP-GSM gateways (7.1B47_22) 10-15-2014 Software (rar) 8.95 MB download
SMS VOIP gateway. Installation 11-11-2013 Documentation (pdf) 0.16 MB download
User manual for DTT VOIP-GSM 8-16-24 gateways 08-01-2018 Documentation (pdf) 1.55 MB download
User manual for DTT 8-16-24 channel gateways (Version 5.36z) 08-01-2018 Documentation (pdf) 1.44 MB download
Windows update for DTT VOIP2GSM gateways 06-08-2013 Driver (rar) 2.65 MB download
IMEI changing in DTT GSM VoIP gateways 06-08-2013 Documentation (pdf) 1.05 MB download

To access this product file, get partner STE status

Special features

  • Scanning of BCCH channel by cyclic or static
  • IMEI changing
  • Image moving from point to point (pair of IMEI and SIM card) Available only with external Sim server DTT. Support a lot of remote gateways DTT as part of the system

  VOIP

  • Signaling: SIP – RFC 3261
  • Support up to 32 sip clients as a sip server simultaneously
  • Codec’s: G.711A,Mu G723 G.726 G.726 G.729
  • Acting as a SIP Server.
  • SIP Account management + Authentication

Interfaces

  • WAN, LAN, RS-232
  • GSM(UMTS) 8 Channels
  • 2 External Antenna SMA with 3.6 meter length cable
File Title Release Date File Type Size (mb) Action
API for DTT VOIP-GSM ver. 7.2B10 10-15-2014 Software (zip) 8.70 MB download
API for DTT VOIP-GSM gateways ver. 7.1B48_26 10-15-2014 Software (exe) 9.34 MB download
API for DTT VOIP-GSM gateways (7.1B48) 10-15-2014 Software (rar) 9.02 MB download
API for DTT VOIP-GSM gateways (7.1B47_22) 10-15-2014 Software (rar) 8.95 MB download
SMS VOIP gateway. Installation 11-11-2013 Documentation (pdf) 0.16 MB download
User manual for DTT VOIP-GSM 8-16-24 gateways 08-01-2018 Documentation (pdf) 1.55 MB download
User manual for DTT 8-16-24 channel gateways (Version 5.36z) 08-01-2018 Documentation (pdf) 1.44 MB download
Windows update for DTT VOIP2GSM gateways 06-08-2013 Driver (rar) 2.65 MB download
IMEI changing in DTT GSM VoIP gateways 06-08-2013 Documentation (pdf) 1.05 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
API for DTT VOIP-GSM ver. 7.2B10 10-15-2014 Software (zip) 8.70 MB download
API for DTT VOIP-GSM gateways ver. 7.1B48_26 10-15-2014 Software (exe) 9.34 MB download
API for DTT VOIP-GSM gateways (7.1B48) 10-15-2014 Software (rar) 9.02 MB download
API for DTT VOIP-GSM gateways (7.1B47_22) 10-15-2014 Software (rar) 8.95 MB download
SMS VOIP gateway. Installation 11-11-2013 Documentation (pdf) 0.16 MB download
User manual for DTT VOIP-GSM 8-16-24 gateways 08-01-2018 Documentation (pdf) 1.55 MB download
User manual for DTT 8-16-24 channel gateways (Version 5.36z) 08-01-2018 Documentation (pdf) 1.44 MB download
Windows update for DTT VOIP2GSM gateways 06-08-2013 Driver (rar) 2.65 MB download
IMEI changing in DTT GSM VoIP gateways 06-08-2013 Documentation (pdf) 1.05 MB download

To access this product file, get partner STE status

Additional Product Information
SMS-email gateway (POP3)
SIP server. Up to 32 SIP clients
H323
