DTT GSM2VOIP 2M8S: GSM-VoIP/FXS/FXO 2 channel gateway
Other photos
|
Main specifications
|
|||||||||||||||||||||||||||||||||||||||||||||
Review
2 simultaneous calls to Voip, PSTN, Cellular, with a direct LAN connection to via IP-PBX or TCP/IP
3 sims that allow , prefixing, LCR, different operators
Contains 1 FXS, 1FXO for PSTN fax or landline outputs/inputs
GSM, CDMA, or UMTS compatablity
A SIP client/Server, that can work stand-alone or in a sim server environment
Solution for: SOHO, small offices to medium size businesses, 2-50 persons
Advantages
Following are the advantages of the VoIP GSM / UMTS unit
Easy to connect
Flexibility, stand alone gateway or use in sim server system
SIP/H323 interface
Bulk sms server, till 500 sms calls per port with 1 click, via email server i.e. Microsoft outlook (optional)
CDR, via Access, Xml, CSV
Supports most IP-PBX exchanges
Cost affordable
The VoIP Gateway is used widely throughout continents
Asia, America, Africa, Europe, LATAM
With IP-PBX exchanges such as
NEC
Alcatel
Siemens
Samsung
ICT
Davos44.net
T4xx
Aastra
MX one
And more………..

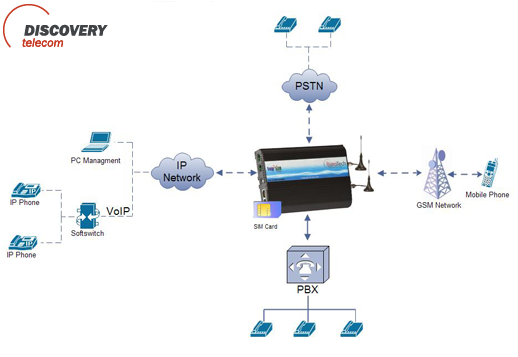

DIAGRAM
Specification
Technical specification: 2 GSM channels 8 Sim cards
Special features
- Scanning of BCCH channel by cyclic or static
- IMEI changing
- Image moving from point to point (pair of IMEI and SIM card) Available only with external Sim server DTT use and several remote gateways DTT as part of the system
VOIP
- Signaling: SIP – RFC 3261
- support up to 32 sip clients as a sip server
- simultaneously
- Codec’s: G.711A,Mu G723 G.726 G.726 G.729
- Acting as a SIP Server.
- SIP Account management + Authentication
Interfaces
- WAN, LAN
- GSM 2 Channel with 2 External Antenna SMA
- type with 3.6 meter length
Download
| File Title | Release Date | File Type | Size (mb) | Action |
|---|---|---|---|---|
| API for DTT VOIP-GSM ver. 7.2B10 | 10-15-2014 | Software (zip) | 8.70 MB |  download |
| API for DTT VOIP-GSM gateways ver. 7.1B48_27 | 10-15-2014 | Software (zip) | 8.67 MB | download |
| SMS VOIP gateway. Installation | 11-11-2013 | Documentation (pdf) | 0.16 MB | download |
| Quick installation guide for DTT Ingate 2M8S VoIP | 06-08-2013 | Documentation (pdf) | 0.08 MB | download |
| User manual for DTT Ingate 2M8S VoIP gateway | 06-08-2013 | Documentation (doc) | 1.93 MB | download |
| Windows update for DTT VOIP2GSM gateways | 06-08-2013 | Driver (rar) | 2.65 MB | download |
| IMEI changing in DTT GSM VoIP gateways | 06-08-2013 | Documentation (pdf) | 1.05 MB | download |
